LED Inground Light Solutions
IP65 waterproof, 20-ton load-bearing rated LED inground lights engineered for landscape architecture, architectural facades, and urban hardscape projects. Factory-direct with full OEM/ODM customization.
LED Inground Light Series
From compact 3W accent lights to powerful 150W architectural uplights -- engineered for flush-mount outdoor installation with superior durability.

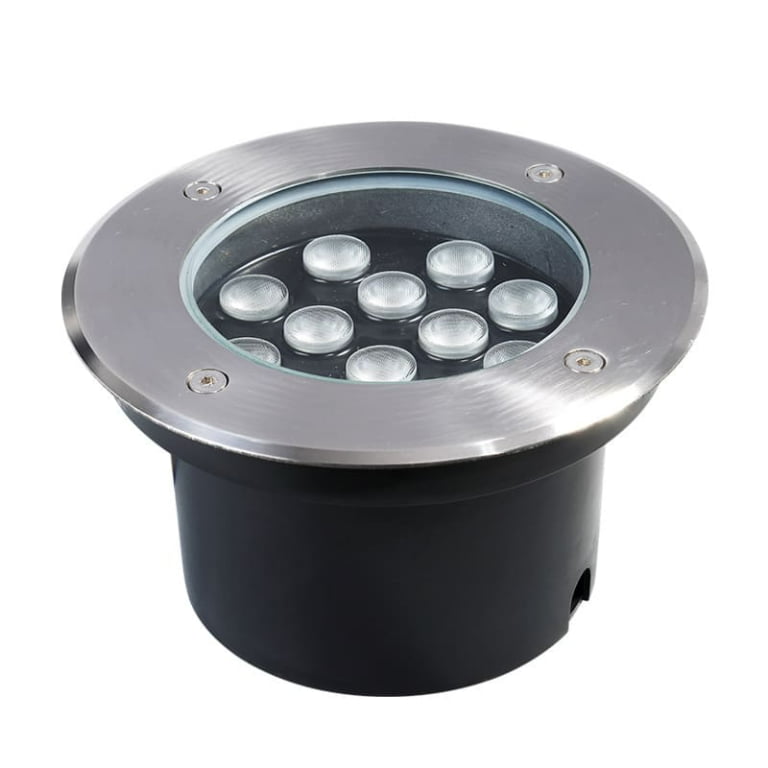

LED Inground Lights

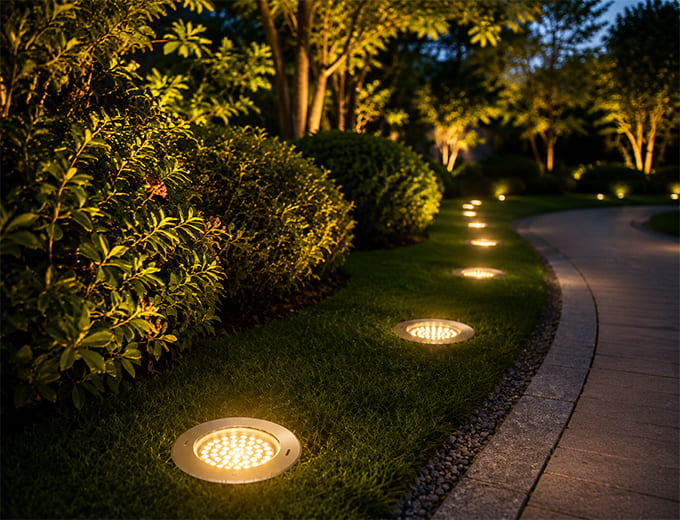

LED inground lights are used for landscape, architectural, and pathway lighting, providing subtle ground-level illumination for gardens, parks, building facades, plazas, and walkways. Their advantages include high durability, waterproof and corrosion-resistant design, energy efficiency, and aesthetic integration into outdoor environments, making them suitable for urban landscaping, commercial complexes, and residential outdoor design projects.
Built for the Harshest Conditions
Every inground light is engineered to survive underground installation -- waterproof, pressure-rated, and thermally optimized for decades of reliable operation.
Dual-seal silicone gasket system prevents water ingress even under continuous submersion up to 3 meters depth.
Heavy-duty die-cast aluminum or 316 stainless steel housing rated for vehicle traffic in driveways and public plazas.
Finned heat-sink design with thermally conductive compound ensures LED junction temperature stays below 75ยฐC.
Tempered glass lens (6mm-10mm) resists impact forces up to 50 joules, suitable for pedestrian and light vehicle zones.
High-efficiency LED chips with PMMA or borosilicate glass optics delivering precise beam angles from 15ยฐ to 60ยฐ.
Input voltage 100-277V AC, PF>0.9, THD<15%. Surge protection up to 4kV standard on all models.
Standard vs. Heavy-Duty Specification Comparison
Landscape & Architectural Applications
Versatile inground lighting solutions for every outdoor environment -- from intimate garden paths to grand civic plazas.

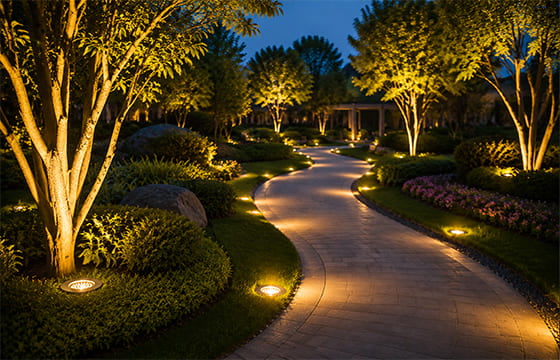

Parks & Gardens
Accent pathways, highlight specimen trees, and define garden borders with warm-toned uplighting that complements natural landscapes.

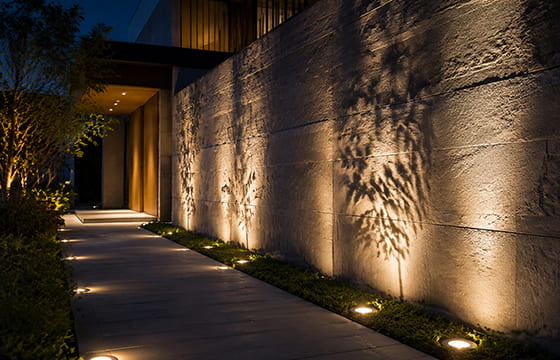

Architectural Facades
Graze building exteriors and sculpted walls with precise beam angles. Creates dramatic shadow play on textured stone and concrete surfaces.

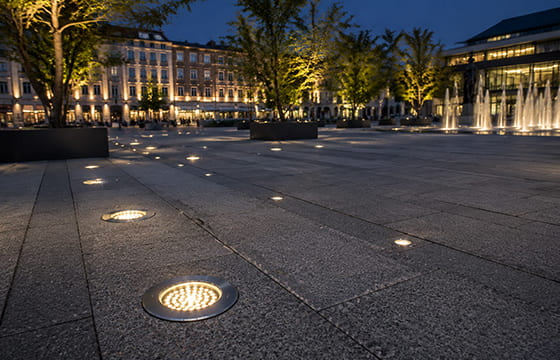

Public Plazas & Squares
Heavy-duty 20T rated fixtures flush-mounted in granite and concrete paving. Safe for pedestrian and vehicle traffic zones.

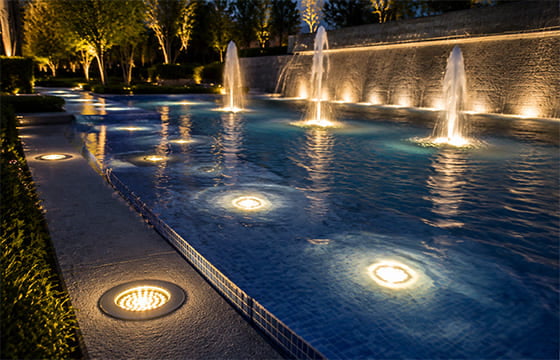

Water Features & Pools
IP68 submersible inground lights for fountain perimeters, pool surrounds, and water feature edges. Fully sealed against moisture.

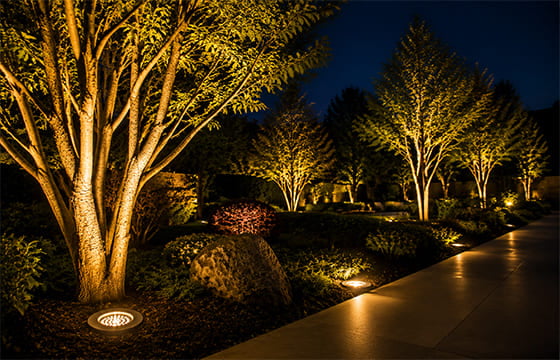

Tree & Shrub Uplighting
Narrow spot and flood optics to uplight mature trees and sculptural planting. Adjustable tilt angle for precise targeting.

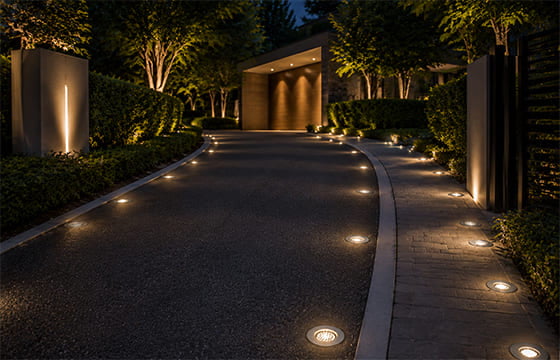

Driveways & Pathways
Recessed into asphalt or pavers to guide vehicles and pedestrians. Shatterproof glass and load-rated housing for safety.
Engineered to Your Vision
Choose from premium housing materials, lens types, and finish colors. Our OEM/ODM team handles everything from single-unit samples to full-scale production runs.
Housing Materials
Marine-grade, mirror or brushed finish. Ideal for coastal and pool environments.
Lightweight, excellent heat dissipation. Powder-coated in 200+ RAL colors.
Premium aesthetic for luxury landscape projects. Natural patina or lacquered finish.
Cost-effective for residential projects. Corrosion-proof, UV-stabilized housing.
Custom Options Available

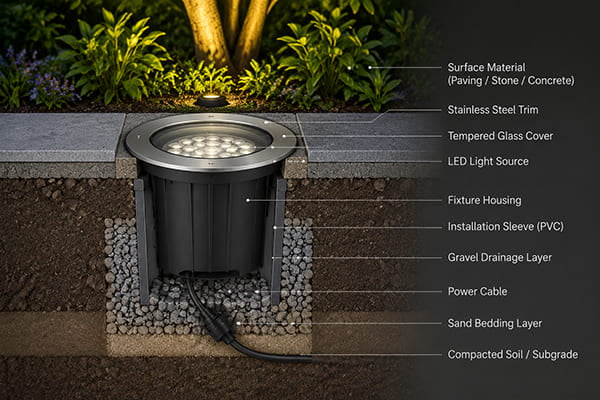

Simple, Secure Installation
Designed for professional landscape contractors with tool-free lamp access and modular junction box systems.
Excavate & Prepare Base
Dig to required depth (typically 150-300mm). Compact gravel base for drainage. Install conduit for cable routing.
Set Junction Box
Place waterproof junction box in excavation. Connect supply cable through conduit. Seal all cable entries with waterproof compound.
Mount Fixture Frame
Set the outer mounting frame flush with finished paving level. Adjust leveling bolts for precise alignment. Secure with anchor bolts.
Connect & Test
Connect LED module to junction box. Perform insulation resistance test (>100Mฮฉ). Power on and verify beam angle and lumen output.
Backfill & Finish
Backfill around frame with compacted aggregate. Install tempered glass lens and secure with stainless screws. Clean glass surface.
Level with paving surface. For pedestrian zones and plazas.
Adjustable ยฑ30ยฐ tilt for precise beam direction on trees/walls.
Deep well design for soft soil and lawn installations.
IP67 rated for permanent water contact at pool and fountain edges.

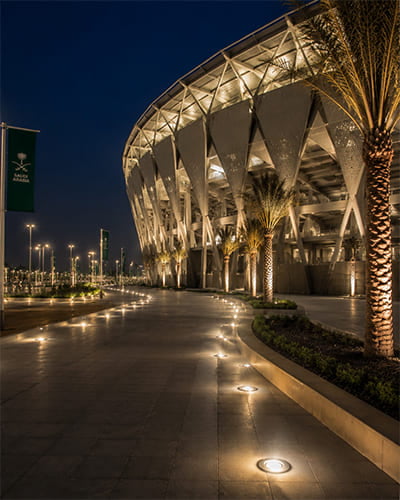

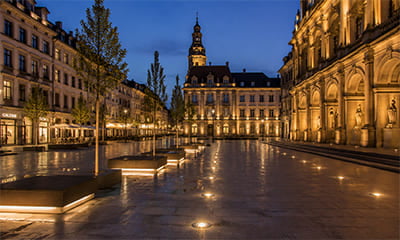

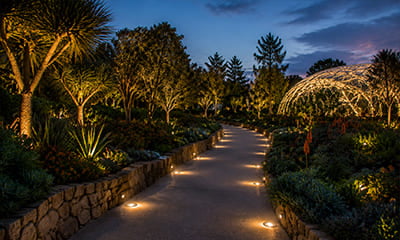

Illuminating Projects Worldwide

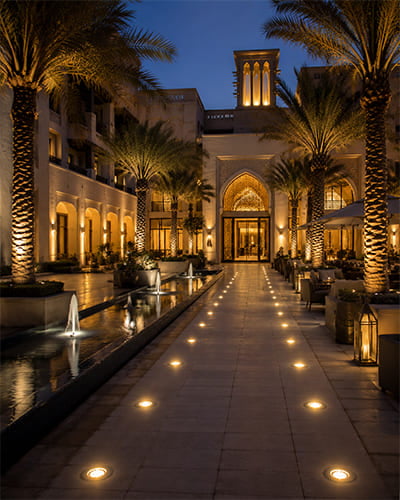

From luxury hotel courtyards in Dubai to public parks in Germany -- our inground lights create unforgettable nightscapes.
Why Choose Upward Lighting?
Factory-direct pricing, rapid sampling, and full OEM support -- everything a global contractor needs in a single supplier.
Factory Direct
Own manufacturing facility in Zhongshan, China. No middlemen -- competitive pricing with full quality control.
Fast Quotation
Receive detailed quotations within 24 hours. Sample production in 7-10 days for new product development.
Full OEM/ODM
Custom wattage, CCT, beam angle, housing color, and branding. MOQ as low as 50 units for custom orders.
Quality Assured
100% aging test (4-8h) before shipment. CE, RoHS certified. 5-year warranty with global after-sales support.
Start Your Lighting Project
Tell us about your project requirements. Our engineering team will respond within 24 hours with a detailed quotation, technical specifications, and sample availability.
